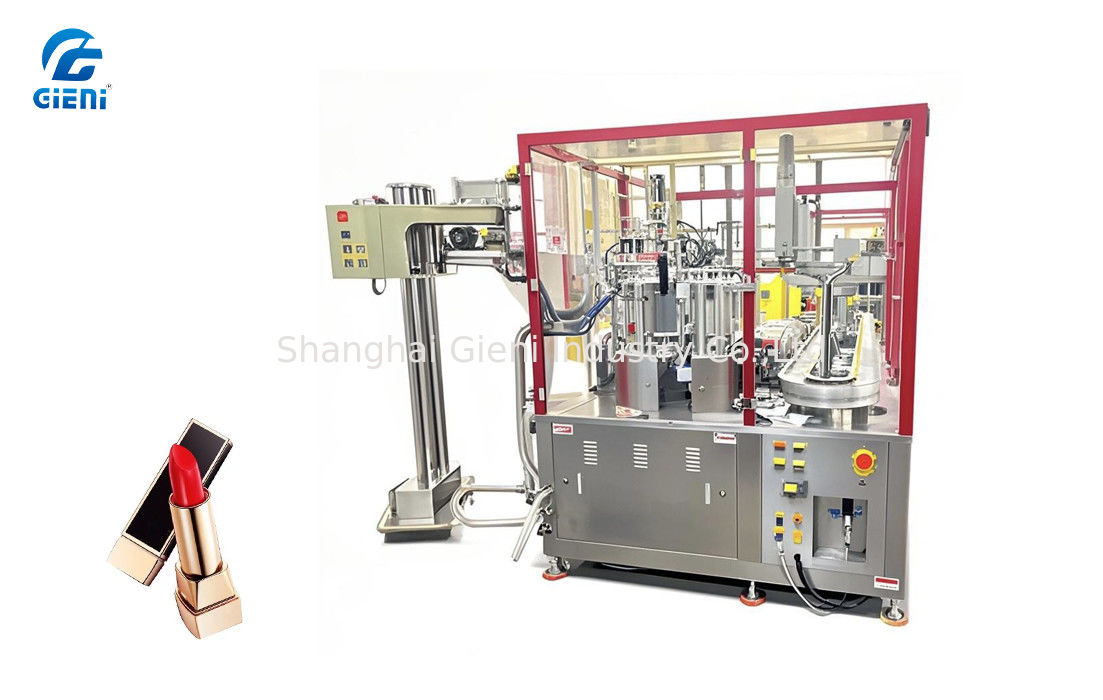

Fully Silicone Lipstick Automatic Filling Machine

Fully Silicone Lipstick Automatic Filling Machine

Merknaam: Gienicos
Modelnummer: GLU-1300
Gedetailleerde informatie
Electrical:
380V
Tankverwarming:
Keramische laag
Functie:
Lippenstiftvulmachine
Verwarmingsvermogen:
2 × 6 kW
HMI:
aanraakscherm
Delieve Time:
20 days
Productiecapaciteit:
1000 ~ 1300 stuks per uur
Operation:
Easy
Automatische capaciteit:
40-60pcs/min
Filling Accuracy:
±0.5%
Conveyor Belt:
can be custmoized
Power:
8000W
Suitable For:
Lipsticks, Lip Gloss, Lip Balm
Guarantee:
Long time service
Operators:
1 Person
Productbeschrijving

1.Overall Framework

1.1 Structural Design

  • Safety cover: Aluminum base with chrome-plated steel surface for corrosion resistance.
  • Tabletop, electrical cabinet, and doors: SUS stainless steel for durability and hygiene.
  • Fixed footstands; detachable material loading station for portability.
  • European-standard aluminum profile columns with stainless steel doors.

1.2 Drive Systems

  • Dial Drive: Imported U-shaped circular rail technology with 28 anodized silicone molds; servo-controlled platform lifting. Fully sealed dynamic components; double-insulated cooling area.
  • Preheating: 2 Leister heaters with adjustable airflow and heat output. Air cylinder-driven lift; handwheel for height adjustment. Timer-controlled heating; digital PID temperature display (with fan speed control).

1.3 Filling & Conveyance

  • Filling Machine: 1 x movable dual-nozzle filler (servo-controlled per nozzle, with secondary mixing). 2 x 30L tanks (external cleaning system). Quick-connect piston pumps; ceramic heating for precise temperature control. Electrically heated dual-layer hoses (replaceable inner hose for color changes). Servo-driven piston pump; air cylinder-controlled needle valve; AC motor agitator. PLC-controlled with touchscreen/button interface; dual power supply options.
  • Nozzle Control: Air cylinder-driven opening/closing and movement. Heated nozzles; SUS collection tray; air cylinder-controlled material movement.

1.4 Auxiliary Modules

  • Reheating: Swiss-imported heating elements; handwheel height adjustment. Touchscreen temperature settings; manual fan control.
  • Cooling: Water-circulation system (-20°C max), 8HP compressor, R404A refrigerant. Under-table cooling channels; piped cold air; double-insulated tunnel.
  • Discharge & Handling: Industrial module-controlled X/Y movement. 4 x container grippers; servo-driven rotation; air cylinder-powered vacuum system (patented dual-clamp design, adjustable force, 8–17.1mm diameter compatibility). Flexible chain conveyor for mold transfer.
  • Tightening: Air cylinder-controlled gripper; servo-driven rotation; torque-controlled dispensing.

2. Electrical Controls

  • Key Components:
    • Controller: Mitsubishi FX5U (Japan)
    • Touchscreen: Weinview 10" (Taiwan)
    • Servo Motors: Mitsubishi (Japan)
    • Circular Rail: Italian tech / China-made
    • Cylinders: Airtac (Taiwan/Japan)
    • Temperature Module: Japan
    • Motors: JSCC (Taiwan)

3. Performance Specs

  • Applications: Regular, slim, and mini lipsticks.
  • Output: 1,000–1,300 pcs/hour (1 operator with robot).
  • Utilities:
    • Power: 3-phase 5-wire, 380V/50–60Hz, 23kW max
    • Air: ≥0.6 MBAR pressure

4. Standard Kit

  • 1 x Main machine
  • 1 x Filling machine
  • Molds & Accessories:
    • 112 x Silicone molds
    • 1 set (4 pcs) x Gripper
    • 16 x Regular container bases
